Description
Product image is representative only. Actual product may differ in appearance depending on size, configuration, and options selected at order.

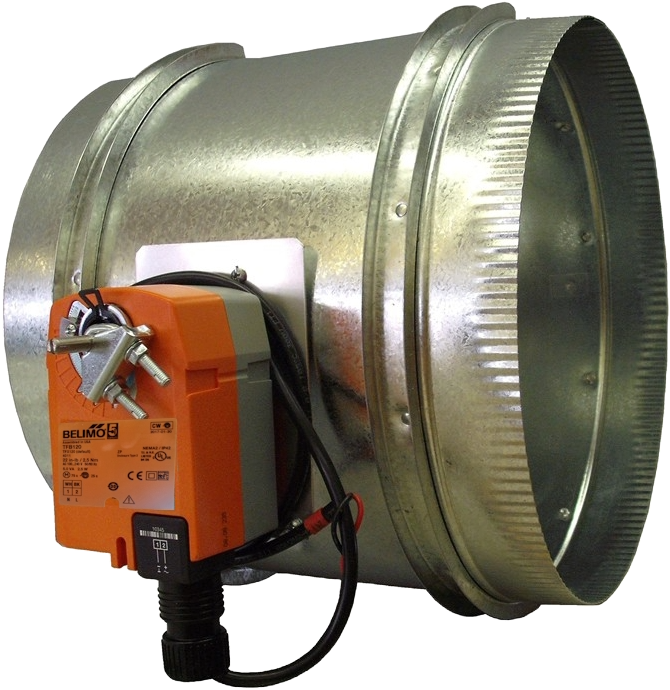

The line-voltage companion to the HAC-40. Same Hoyme inline damper body, same on/off spring return behavior, same PO/PC configuration, same 6"–20" size range. One difference: the Belimo TFB120 accepts 100–240 Vac directly — no step-down transformer, no low-voltage circuit required. Where line voltage is what's available at the damper location, the TFB120 is the actuator and the HAC-44 is the product.
If 24 Vac is available at the damper location, use the HAC-40 (TFB24) instead. The HAC-40 has confirmed CSA certification to 12", accepts 24 Vdc as well as 24 Vac, and the low-voltage wiring is typically already in place on BAS-controlled systems. The HAC-44 is the solution to a specific site condition — line voltage only — not a general upgrade over the HAC-40. Also confirm CSA certification status with Hoyme before ordering on code-required applications.
✓ Belimo TFB120 — 100–240 Vac direct — accepts North American 120 Vac, 208/240 Vac, and international line voltage across that full range; no transformer, no low-voltage run
✓ Same damper body and spring return as HAC-40 — identical on/off fail-safe behavior; PO springs closed on power loss, PC springs open; blade position is always defined on loss of power
✓ 6"–20" even-inch sizes — commercial and large residential duct range; same size availability as HAC-40
✓ TFB120 field-replaceable — stocked through Belimo distributors; actuator replaces without disturbing the damper body or duct connections
✓ End switch and heat bypass (-H) available on all sizes — factory-installed; no relay on TFB120 motor code
HAC-44 (TFB120) — this product
✓Only line voltage (100–240 Vac) available at the damper location
✓RTU control panel or line-voltage contactor is the control source
✓Retrofit where adding low-voltage infrastructure is impractical
✓Industrial or commercial make-up air on line-voltage control
HAC-40 (TFB24) — use instead when…
→24 Vac or 24 Vdc is already available at the damper location
→BAS or DDC control system with 24 Vac/dc outputs
→CSA certification confirmed to 12" is required without pre-order confirmation
→24 Vdc control output — TFB24 accepts either polarity DC
Actuator

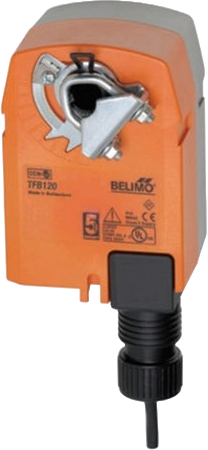

Belimo TFB120 — 100–240 Vac
Sizes
6"–20" even inches
Action
PO or PC
End Switch
Optional (S prefix)
CSA Status
Confirm with Hoyme before ordering
Relay
Not available on TFB120
Need modulating or floating point control at line voltage? The HAC-44 is on/off only — 2-position gate. For 3-wire floating point DDC control at 100–230 Vac see HAC-35 (Belimo CMB120-3). For UL 555S fire and smoke at line voltage see HAC-80 (Belimo FSLF120 US). For 24 Vac/dc on/off see HAC-40 (TFB24).
2-year electrical · 10-year mechanical warranty
Hoyme damper body — Made in Canada · Belimo TFB120 field-replaceable through Belimo distributors
