Can I use the OOH for an exhaust outlet?

The regular fixed-screen OOH is inlet only and cannot be used as an exhaust outlet — the screen traps lint, debris, and moisture on exhaust applications, and the hood geometry is designed for intake airflow. The Velcro-screen OOH can be converted to outlet use by removing the screen entirely, but the hood body is still inlet geometry. For a dedicated exhaust outlet at the building wall, use the BDH Back Draft Hood.

Do I need the Velcro type if I am in a cold climate?

Not always, but it is worth considering. If the intake is exposed to prevailing winds, north-facing, or in a climate with frequent freeze-thaw cycles, the Velcro screen pays for itself the first time you need to clear a blocked screen without a screwdriver. In cold climates where screen cleaning is a seasonal maintenance item, the Velcro type is the right default. The cost difference between the two types is small.

Does the OOH include a damper?

No. The OOH is a passive hood with no damper function. It is always open to outdoor air. Damper control is provided by a separate motorized inline damper in the duct run — typically a HAC or HAC-L — or by the MOH Motorized All-Weather Hood if motorized control at the wall is preferred. If the intake needs to close when the system is off, pair the OOH with a motorized HAC inline, or replace the OOH with a MOH.

Can I get the Velcro type in regular metal finish?

Yes. The Velcro type defaults to painted white, but regular metal finish is available on both types. Specify the alternate finish at order. The fixed-screen type defaults to regular metal but is available in painted white.

Match the OOH diameter to the fresh air duct diameter at the wall penetration. Standard residential fresh air intake is typically 5 inch or 6 inch for a single-family home. HRV and ERV fresh air ports are typically 5 inch or 6 inch depending on unit capacity. Make-up air inlets for commercial kitchen exhaust systems may be 8 inch to 12 inch. If the duct transitions near the wall, match the OOH to the duct diameter at the wall, not at the appliance.

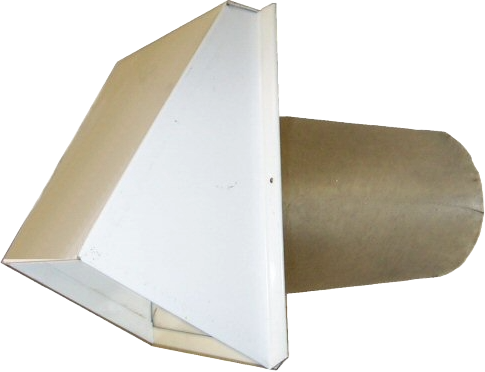

OOH All-Weather Inlet Hood, 4 to 12 in.

Passive all-weather inlet hood for fresh air intake duct terminations at the building exterior. No motor, no actuator, no wiring, no control sequence. Install at the wall penetration, connect the duct on the interior side, and it's done. Keeps rain, debris, and pests out while allowing outdoor air to enter freely whenever the connected ventilation, combustion air, or make-up air system calls for it. Sizes 4"–12".

✓ Inlet only, always open to outdoor air. Damper control is handled by a motorized HAC inline damper in the duct run; the OOH provides weather protection and pest exclusion at the exterior

✓ Fixed screen (regular type): permanent ¼" mesh, regular metal default; standard for most residential and commercial fresh air intake applications in mild to moderate climates

✓ Velcro screen (removable type): ¼" mesh removes in seconds for cleaning; painted white default; the right default for cold climates where screen icing is a seasonal maintenance item

✓ Both finishes available on both types: fixed screen defaults to regular metal, Velcro defaults to painted white; specify alternate finish at order if needed

✓ No power, no wiring, nothing to fail: 10-year mechanical warranty; the OOH will outlast most of the mechanical systems it serves

Inlet only, not for exhaust outlet applications. The fixed-screen OOH traps lint, debris, and moisture on exhaust applications and cannot be used as an outlet. The Velcro type can be converted to outlet use by removing the screen, but the hood body is inlet-geometry. For dedicated exhaust termination use the BDH Back Draft Hood. For motorized open/close control at the wall see the MOH Motorized All-Weather Hood.

Regular (Fixed Screen): specify when…

✓Mild to moderate climate: screen icing is not a seasonal concern

✓Set-and-forget install, no maintenance access planned

✓Regular metal finish is preferred

✓Duct will remain a fresh air intake permanently

Velcro (Removable Screen): specify when…

→Cold climate: screen icing or frost accumulation is expected

→Seasonal screen cleaning is part of the maintenance plan

→Painted white finish preferred: white siding or trim

→Any chance the duct may be repurposed to exhaust in future

Application

Inlet only: passive, always open

Sizes

4"–12" (no 11")

Screen

¼" mesh: fixed or Velcro removable

Operation

No power, no wiring

Not Suitable For

Outlet / exhaust applications

Cold Climate

Specify the Velcro removable screen

Warranty

10-year mechanical

Need motorized open/close control at the wall? The OOH is always open: damper control is handled by an inline HAC in the duct run. If the wall is the right control point and you want hood and damper in one unit, use the MOH Motorized All-Weather Hood instead. For combustion air on fuel-burning appliances, pair the OOH with a HOM, which wires directly into a 24 Vac thermostat circuit; an ADP relay adaptor is needed only for millivolt or 110 Vac appliances.

10-year mechanical warranty

Made in Canada · No power, no wiring, nothing to fail electrically

Product image is representative only. Actual product may differ in appearance depending on size, configuration, and options selected at order.
