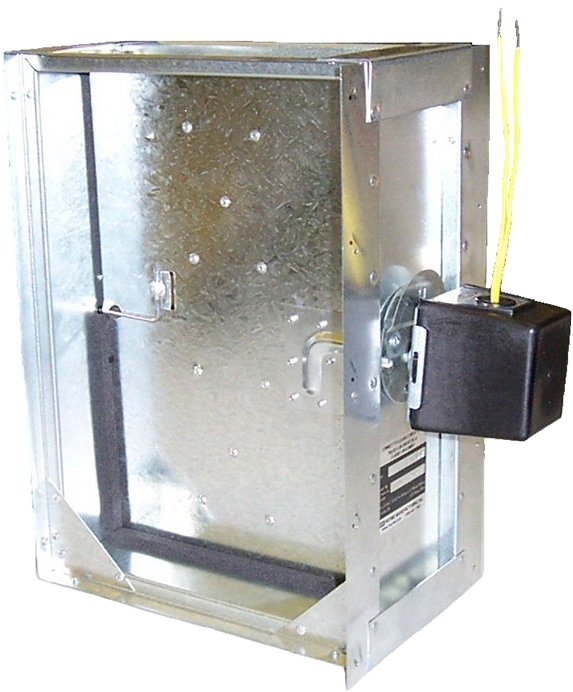

HCR/HSI Rectangular Damper with Belimo TFB120, 100 to 240 Vac

Custom square and rectangular motorized damper built to your duct dimensions and factory-fitted with a Belimo TFB120 on/off spring return actuator for 100 to 240 Vac. Use the HCR for new ductwork (it connects inline to open duct ends) or the HSI slip-in model for existing ductwork. Specify HCR or HSI in your quote request.

• Belimo TFB120, on/off spring return, 100 to 240 Vac
• Power open or power close (choose on this page), with or without end switch
• 58 sizes from 6" x 34" to 18" x 36"
• Custom built and non-returnable, so we confirm every specification before building

How the TFB120 actuator works

The Belimo TFB120 is an on/off actuator with spring return that runs directly on line voltage from 100 to 240 Vac, so no control transformer is needed. With power applied, the damper drives to its powered position. When power is removed, the spring returns it to its fail-safe position. Power Open means spring close on power loss; Power Close means spring open on power loss. The end switch option provides a contact that proves the damper has reached position, for interlocking an exhaust fan or appliance.

HCR or HSI: which one do you need?

The HCR connects inline between two open duct ends, for new construction, remodels and any duct run being modified. The HSI slips into existing ductwork through a partial cut on one side only, so there is no need to remove a duct section or cut all four sides. The HSI is built slightly undersize so it slides inside the duct, and a 1" flange seats against the duct exterior. Order the interior duct dimension for either type, and call the factory if you are unsure how to measure.

Before you request a quote

1. Width and height: exact interior duct dimensions, in inches.
2. Type: HCR (inline) or HSI (slip-in).
3. Actuator: choose it on this page.
4. Action or signal: confirm with the controls designer.
5. Configuration: standard or with end switch.
6. Steel gauge: 26 ga. galvanized standard; specify another gauge if the job calls for it.
7. Motor location: shortest side by default; specify another side if clearance requires it.

Dimensions, actuator, action, voltage and motor location cannot be changed after manufacture, and custom dampers cannot be returned. If any dimension is in doubt, call 1-800-661-7382 before ordering.

Specifications

Related products

Hoyme spring drive version (24 Vac on/off): HCR/HSI Custom Rectangular Dampers. Round duct: HAC inline damper series. Replacing a competitor part number: cross-reference tool.
