What is the difference between HAC-50 and HAC-51?

Both products are identical in construction, size range, actuator, and available options. The only difference is how the relay is specified: the relay is optional on the HAC-50 and standard (included on every unit) on the HAC-51. Specify HAC-51 when a relay output is required on every unit in the system. Specify HAC-50 when the relay is needed on some units but not all.

Why is 7 inch not available in the HAC-50/51 series?

The available sizes in this series are 6 inch, 8 inch, 9 inch, 10 inch, 12 inch, and 14 inch. For 7 inch applications, the standard HAC (Hoyme drive, available through 9 inch) covers that size. If you specifically need a 7 inch damper with the quarter-turn actuator, contact your wholesaler or Hoyme to ask about a custom order.

Can I use either the HAC-50/51 or the standard HAC on a 6 inch duct?

Yes. For 6 to 9 inch applications you can use either the standard HAC (Hoyme drive, available to 9 inch) or the HAC-50/51 (quarter-turn, 1/4 inch drive). Both provide spring return operation and the same option set. The standard HAC is CSA certified and the HAC-50/51 is not, so use the standard HAC where certification is required. The HAC-50/51 is the choice when the duct exceeds 9 inch, because the Hoyme drive is not rated above that size.

Are the heat bypass and insulated body options available on all HAC-50/51 sizes?

Yes. Both options are available on all sizes in the HAC-50/51 series. Specify -H for hot air supply duct zone control where full shutoff causes heat buildup, and -L for cold climate installations where the damper body will be subject to condensation. Both are factory-installed; neither is a field modification.

What should I use for round duct larger than 14 inch?

For sizes above 14 inch, use the HAC-40 (Belimo TFB24), which is available in 6 inch through 20 inch in even-inch increments, or the HAC Belimo series for modulating and floating point control.

HAC-50/51 Quarter-Turn Inline Damper, 24V Spring Return

The standard HAC option set scaled to 6"–14" round duct. Quarter-turn actuator on a ¼" drive shaft with the same spring return fail-safe, same PO/PC configuration, same end switch and relay options as the standard HAC, rated for the torque demands of larger blade areas. Not CSA certified; where certification is required up to 9", use the standard HAC. HAC-50 and HAC-51 are the same product: the only difference is whether the relay is optional (HAC-50) or standard on every unit (HAC-51).

Confirm PO vs. PC before ordering. The action is factory-set. PO is correct for fresh air intake and make-up air: the duct seals when the system is off. PC is used only when fail-open on power loss is required. Note: 7" is not available in this series; use the standard HAC (Hoyme drive, available to 9") for 7" applications.

✓ Quarter-turn ¼" drive shaft actuator: rated for the torque requirements of 6"–14" blade areas under duct static pressure conditions where the standard Hoyme drive is not

✓ Same spring return fail-safe as the standard HAC: blade springs to fail-safe position on power loss regardless of duct pressure; PO or PC to suit the application

✓ Full option set available on all sizes: end switch, relay, heat bypass (-H), insulated body (-L); all factory-installed

✓ ¼" drive shaft: industry standard interface. Actuator replacement not limited to a single proprietary part

✓ Not CSA certified: where the job requires a CSA certified damper, use the standard HAC (2" to 9")

✓ Sizes above 14"? See HAC-40 (Belimo TFB24, 6"–20") or the HAC Belimo series for modulating and floating point control

HAC-50

✓Relay optional: add when needed on specific units

✓Use when relay is the exception: most units don't need it

✓Cleaner ordering when relay-free is the default configuration

HAC-51

→Relay standard: included on every unit automatically

→Use when relay is required on all units: simplifies ordering on multi-zone systems

→Specify size, action, end switch: relay is just there

Size	HAC-50 (relay optional)	HAC-51 (relay standard)	Actuator
6"	HAC-0650-xxx	HAC-0651-xxx	Quarter-turn, ¼" drive
8"	HAC-0850-xxx	HAC-0851-xxx	Quarter-turn, ¼" drive
9"	HAC-0950-xxx	HAC-0951-xxx	Quarter-turn, ¼" drive
10"	HAC-1050-xxx	HAC-1051-xxx	Quarter-turn, ¼" drive
12"	HAC-1250-xxx	HAC-1251-xxx	Quarter-turn, ¼" drive
14"	HAC-1450-xxx	HAC-1451-xxx	Quarter-turn, ¼" drive

7" is not available in this series: use the standard HAC (Hoyme drive, available to 9") for 7" applications.

Actuator

Quarter-turn: ¼" drive shaft

Sizes

6", 8", 9", 10", 12", 14"

Voltage

24 Vac

Action

PO or PC

Certification

Not CSA certified

7" Available?

No: use standard HAC

Interlocking with the furnace fan? Use the ADP-0241-05A (24 Vac switch) or ADP-1101-05A (120 Vac exhaust fan switch) with an OPO or OPC variant; both open the damper and start the furnace fan together. Where an exhaust fan must wait until the damper proves open, use a TPX proving adaptor with the SPO or SPC variant. See the ADP series for the correct model for your application. For sizes above 14" see HAC-40 (Belimo TFB24).

2-year electrical · 10-year mechanical warranty

Made in Canada · ¼" drive shaft, industry-standard actuator interface

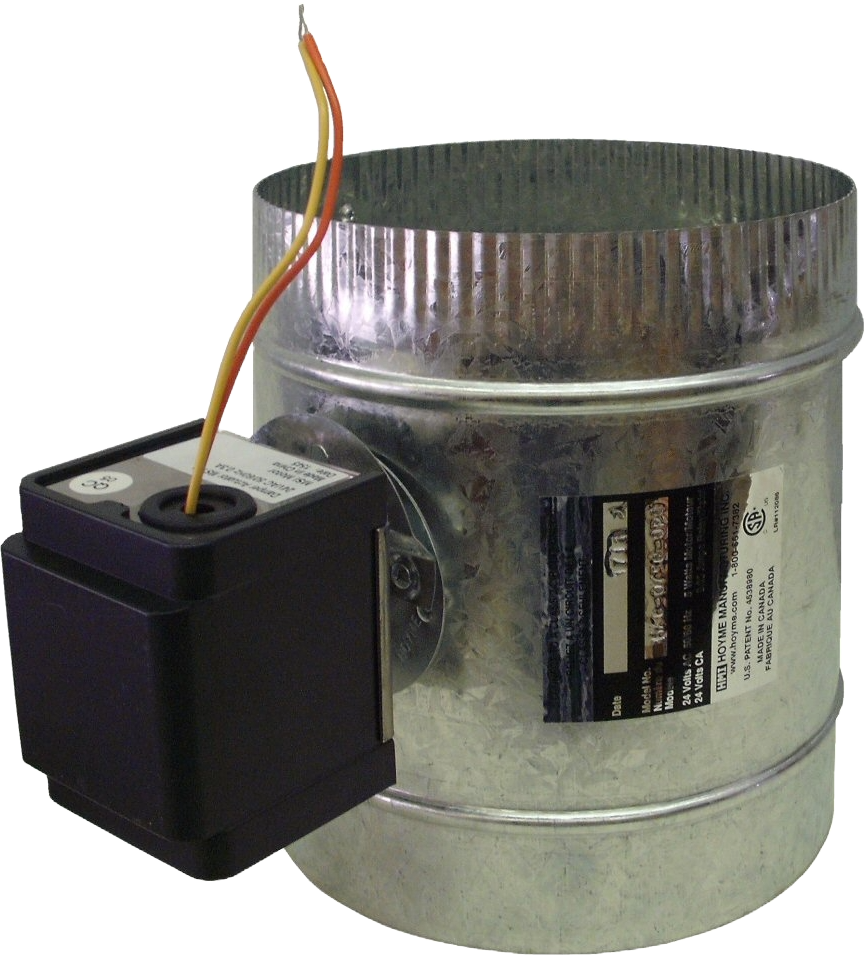

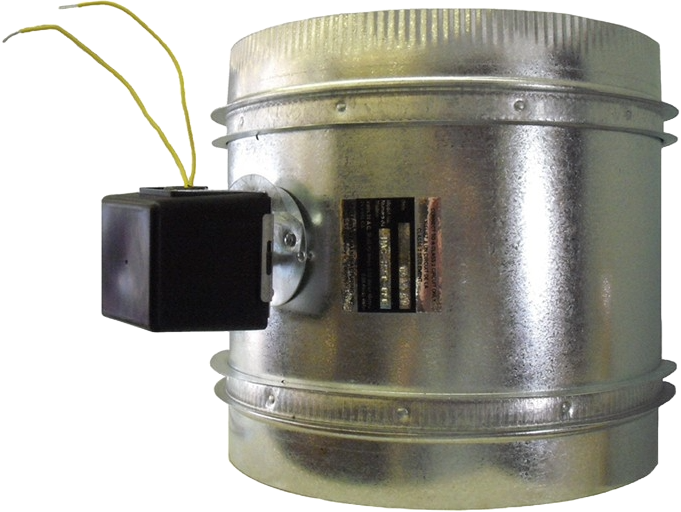

Product image is representative only. Actual product may differ in appearance depending on size, configuration, and options selected at order.
