Description
Motorized flue damper for commercial and large residential vent runs from 10" to 30". Power Close / Spring Open fail-safe: the flue path is always clear on any power interruption. Belimo TFB24 actuator. Relay and end switch included on every unit. Select diameter only.
Appliance interlock is required on every installation. The appliance must not fire until the end switch confirms the HAC-F is in the spring-open (flue clear) position. Do not operate a motorized flue damper without interlock. This is a safety requirement regardless of appliance size or application type.
✓ Spring Open fail-safe: flue path is clear on any power loss; spring operates without electricity, without control signal, without BMS
✓ Belimo TFB24 actuator: rated for the torque demands of 10"–30" blade areas under commercial flue static pressure and temperature conditions
✓ Relay and end switch included on every unit: no configuration required; relay feeds ADP or BMS, end switch confirms spring-open position before firing
✓ Belimo TFB24 field-replaceable: stocked through Belimo distributors; actuator replaces without removing the damper body from the flue run
✓ CSA certified to 12": for 14"–30", confirm AHJ acceptance before ordering on code-required applications
✓ Need 4"–9"? Use the standard HAC-F with Hoyme drive; same SPC-F spring-open fail-safe behavior
Fail-Safe
Spring Open: flue clear on power loss
Sizes
10"–30" even inches
Actuator
Belimo TFB24, 24 Vac/dc
Action
Power Close / Spring Open
Included
Relay + end switch on every unit
CSA Status
Certified to 12": confirm AHJ for 14"–30"
| Size | Part Number | Actuator | Action | Relay | End Switch |
|---|---|---|---|---|---|
| 10" | HAC-1041-SPC-F | Belimo TFB24 | PC / Spring Open | Included | Included |
| 12" | HAC-1241-SPC-F | Belimo TFB24 | PC / Spring Open | Included | Included |
| 14" | HAC-1441-SPC-F | Belimo TFB24 | PC / Spring Open | Included | Included |
| 16" | HAC-1641-SPC-F | Belimo TFB24 | PC / Spring Open | Included | Included |
| 18" | HAC-1841-SPC-F | Belimo TFB24 | PC / Spring Open | Included | Included |
| 20" | HAC-2041-SPC-F | Belimo TFB24 | PC / Spring Open | Included | Included |
| 22" | HAC-2241-SPC-F | Belimo TFB24 | PC / Spring Open | Included | Included |
| 24" | HAC-2441-SPC-F | Belimo TFB24 | PC / Spring Open | Included | Included |
| 26" | HAC-2641-SPC-F | Belimo TFB24 | PC / Spring Open | Included | Included |
| 28" | HAC-2841-SPC-F | Belimo TFB24 | PC / Spring Open | Included | Included |
| 30" | HAC-3041-SPC-F | Belimo TFB24 | PC / Spring Open | Included | Included |
Select diameter only: all other options are identical on every unit.
Need an ADP relay adaptor? Not on a 24 Vac appliance. The HAC-F end switch wires in series with the thermostat wire to "W", so the appliance fires only after the damper has opened. For millivolt safety systems use ADP-0MV2-S5A. For 120 Vac safety controls, call technical support at 1-800-661-7382 to confirm the adaptor.
2-year electrical · 10-year mechanical warranty
Made in Canada · Belimo TFB24 field-replaceable through Belimo distributors

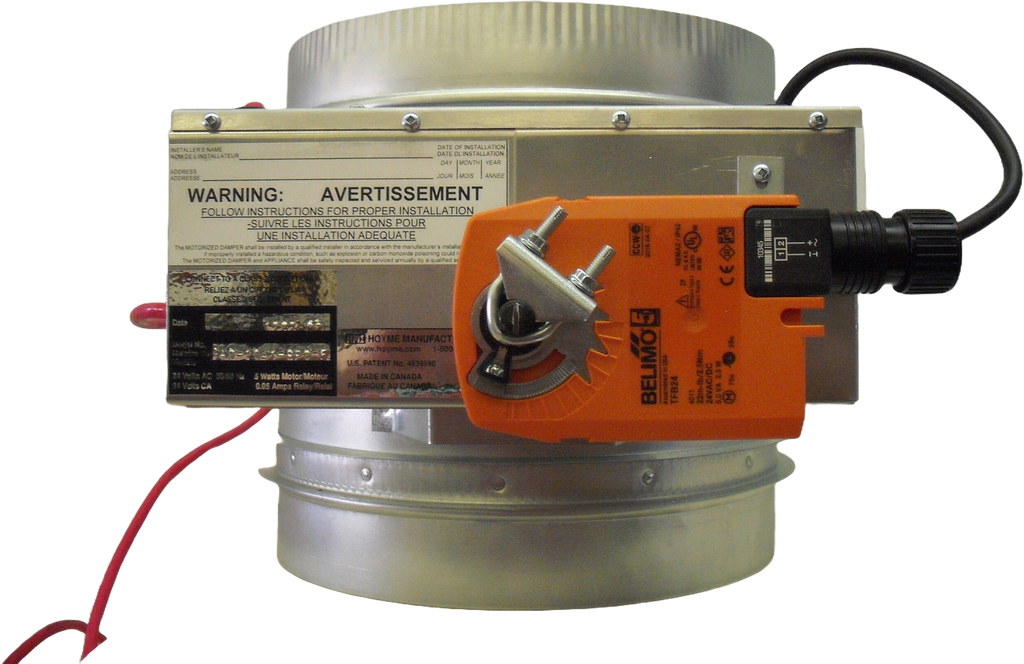

Product image is representative only. Actual product may differ in appearance depending on size, configuration, and options selected at order.
