Description
The HAC-12L combines two features in one unit: the 120 Vac built-in transformer of the HAC-12 and the factory-insulated body of the HAC-L. For one specific situation: a fresh air damper location that is both on a 120 Vac site and in unconditioned or semi-conditioned space where condensation on the damper body is a concern. Both conditions must be present. If only one applies, one of the single-feature variants is the correct order. CSA certified. Sizes 4"–9".
Do not supply 24 Vac to a HAC-12L. The built-in transformer requires 120 Vac input. Supplying 24 Vac will result in product damage and will not operate the damper.
The HAC-12L insulates the damper body only. The duct run from the exterior penetration to the HAC-12L still requires insulation per code: insulate the duct separately.
✓
Built-in 120 Vac to 24 Vac transformer: one switched 120 Vac circuit to the damper; no separate transformer, no low-voltage wiring run required
✓
Factory insulation: applied before assembly. Covers the actuator housing, motor lead exits, and collar joint where field-wrapping fails first; not field-applied foam tape
✓
Same spring return operation as the standard HAC: Hansen motor with 24 Vac spring return internally; same PO/PC fail-safe behavior
✓
Canada/USA CSA certified
✓
PO or PC action, end switch available: all factory-installed; relay not available on motor code 12; confirm action before ordering
| Job Condition | Right Product |
|---|---|
| 120 Vac + cold climate / unconditioned damper location (insulation needed) | HAC-12L: this product |
| 120 Vac + fresh air / make-up air, conditioned damper location | HAC-12 |
| 120 Vac + hot air duct zone control (bypass needed), conditioned location | HAC-12H |
| 24 Vac + cold climate / unconditioned damper location | HAC-L |
| 24 Vac + hot air zone control (bypass needed) | HAC-H |
| 120 Vac + cold climate AND hot air zone control (bypass + insulation) | Contact Hoyme |
Supply Voltage
120 Vac: built-in transformer
Insulation
Factory, not field-wrapped
Sizes
4"–9"
Action
PO or PC
Certification
Canada/USA CSA
Relay
Not available on motor code 12
Need relay output or an ADP furnace fan interlock? Motor code 12 does not include relay capability on any 120 Vac variant. For cold climate fresh air with relay and ADP interlock, use the HAC-L (24 Vac) with the relay option and the appropriate ADP relay adaptor. If the site is 120 Vac only, discuss a line-voltage relay approach with your controls supplier.
2-year electrical · 10-year mechanical warranty
CSA certified · Made in Canada · Built for Canadian winters

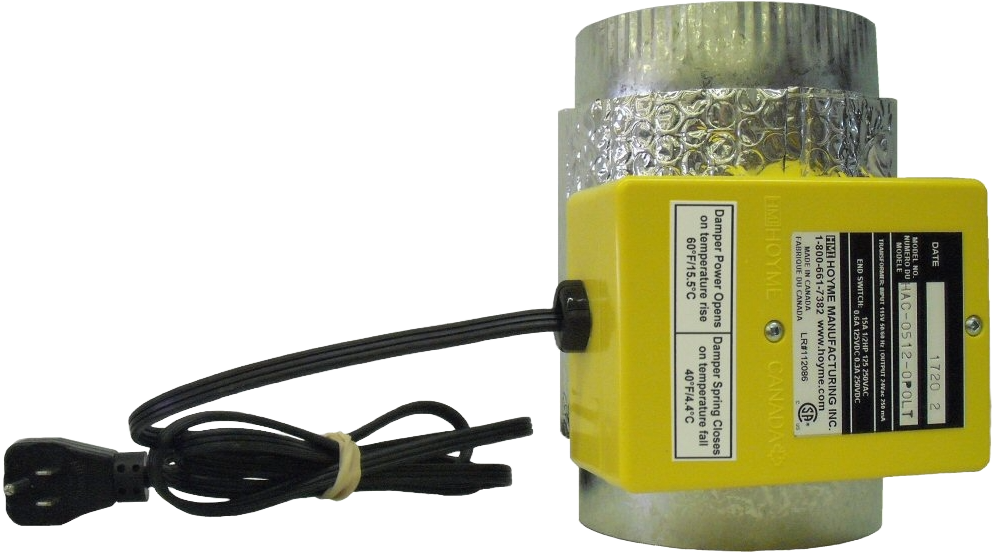

Product image is representative only. Actual product may differ in appearance depending on size, configuration, and options selected at order.
