What is the difference between the HAC and the HAC-L?

The HAC-L is the cold-climate version of the standard HAC inline damper. The damper body carries factory insulation — applied before assembly, not wrapped in the field — reducing condensation risk and heat loss at the damper location. Everything else is identical: the same 24Vac spring return drive, the same CSA-certified assembly, the same PO/PC configuration, the same end switch and relay options.

Why not just field-wrap a standard HAC with foam insulation?

Field-wrapping misses the thermal bridges that matter most — the actuator housing, motor lead exits, end switch wiring penetrations, and collar-to-duct joint edges. Those are the cold metal surfaces where condensation forms first. Factory insulation is applied before assembly and covers those surfaces as part of the product geometry. On a cold climate installation that will see twenty years of freeze-thaw cycling, factory insulation holds up. Field-wrapped foam tape delaminates, compresses, and gaps over time.

Does the HAC-L replace duct insulation on the fresh air run?

No. The HAC-L insulates the damper body — the metal housing, blade assembly, and actuator mounting area. The duct run from the exterior penetration to the HAC-L still needs to be insulated per code and application requirements. The HAC-L solves the damper-location condensation problem. Insulating the duct run solves the duct-level problem. Both are required on a cold climate fresh air installation.

Is there a 120Vac version of the HAC-L?

Yes — the HAC-12L combines the 120Vac built-in transformer with the factory-insulated body. Use HAC-12L when only 120Vac is available at the damper location and insulation is required.

When is the standard HAC sufficient — when does the job actually require the HAC-L?

The standard HAC is sufficient when the damper is in conditioned mechanical space where ambient temperature stays above the dewpoint of the indoor air year-round. The HAC-L is required when the damper location will be exposed to temperatures low enough to cause condensation on the metal body — typically any location in unconditioned space on a Canadian or northern US installation where outdoor temperatures regularly go below -10°C. When in doubt, specify the HAC-L.

HAC-12L Insulated Inline Damper – 120Vac, Cold Climate, 2

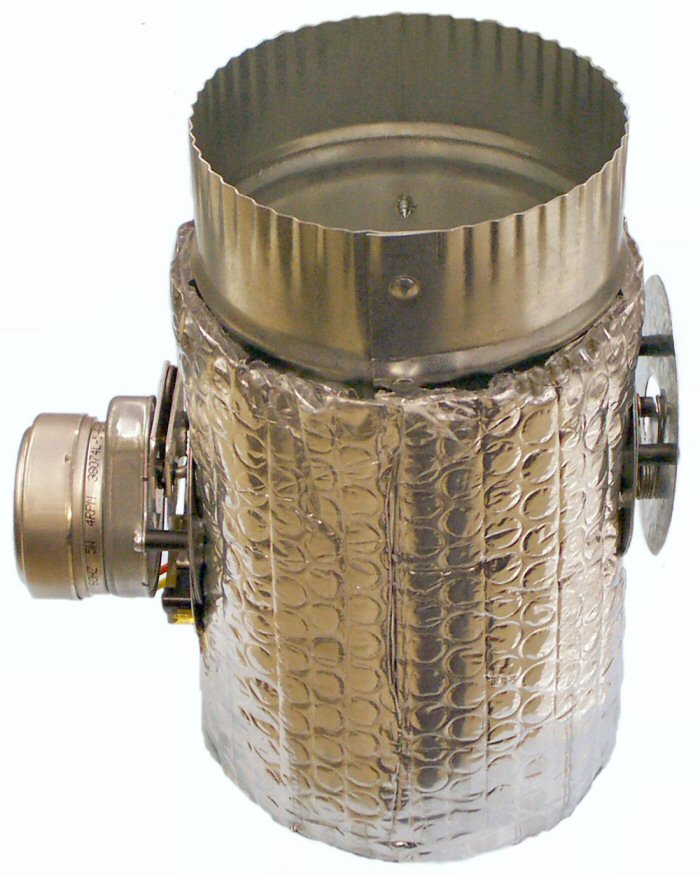

Product image is representative only. Actual product may differ in appearance depending on size, configuration, and options selected at order.

Factory-insulated motorized inline fresh air damper for cold climate installations — unconditioned spaces, crawlspaces, or any location where the damper body is exposed to temperatures that cause condensation. Same patented Hoyme drive as the standard HAC. CSA certified. Sizes 2"–9".

✓ Factory insulation — applied before assembly — covers the actuator housing, motor lead exits, and collar joint where field-wrapping fails first

✓ Same drive as standard HAC — patented Hoyme 24 Vac spring return, stall-protected, nylon bearings, CSA certified complete assembly

✓ PO or PC action — confirm before ordering; changing the action after installation requires full drive disassembly and is not practical once the unit is in a duct run

✓ End switch and relay available — same options as standard HAC; relay not available on 2" and 3"

✓ Replacement parts stocked — motor kits, microswitch kits, spring return kits at your wholesaler

The HAC-L insulates the damper body only. The duct run from the exterior penetration to the HAC-L still requires insulation per code. If the damper is in conditioned mechanical space with no condensation risk, the standard HAC is sufficient and less expensive.

Insulation

Factory — not field-wrapped

Sizes

2"–9"

Voltage

24 Vac

Action

PO or PC

Certification

CSA — complete assembly

120 Vac version

See HAC-12L

Need an ADP relay adaptor? For ventilation code compliance — fresh air damper interlocked with furnace fan — the ADP relay adaptor sequences the HAC-L open first, proves position via end switch, then energizes the fan. Order the SPO or SPC variant when using an ADP adaptor. See the ADP series for the correct model for your application.

2-year electrical · 10-year mechanical warranty

Made in Canada · Built for Canadian winters

HAC-L Insulated Inline Fresh Air Damper — CSA Certified, 24 Vac, 2"–9", Factory-Insulated Body
